Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Plaats van herkomst China
Merknaam CENO
Certificering CE,RoHS,ISO9001,UL
Modelnummer Voor de toepassing van deze verordening geldt de volgende bepalingen:
Productgegevens
Optische vezels:
5 * 5A; 4 * signaal; 1 * Ethernet; 1 * Glasvezel
Nominale spanning:
0 ~ 220 VAC/VDC
Dielectrische sterkte:
≥ 1000VAC@50Hz; ≥ 300VAC@50Hz
Isolatieweerstand:
De bandbreedte van de bandbreedte van de bandbreedte van de bandbreedte van de bandbreedte van de ba
Contactweerstand:
≤ 10mΩ
Contactmateriaal:
Edel metaal
Huismateriaal:
Aluminiumlegering
Werktemperatuur:
-40°C~+50°C
Werkvochtigheid:
60 % RH
IP-beschermingsgraad:
IP51
Werksnelheid:
0~300rpm
Buitendeursdiameter:
Ø56mm
Grootte en lengte van de looddraad:
Op verzoek
Waallengte:
1310/1550
Tussenvoegselverlies:
<2dB
Verlies van opbrengst:
<30dB
Invoegverlies Afwijking:
＜±0.5dB
Verbinding:
FC
Installatie:
Installatie van flenzen
Betaling en verzendvoorwaarden
Min. bestelaantal
1 stuks
Prijs
Onderhandelbaar
Verpakking Details
Cartons/Asverzoek
Levertijd
1 weken
Betalingscondities
T/T, PayPal, Western Union
Levering vermogen
1000 stuks per maand
Productbeschrijving

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

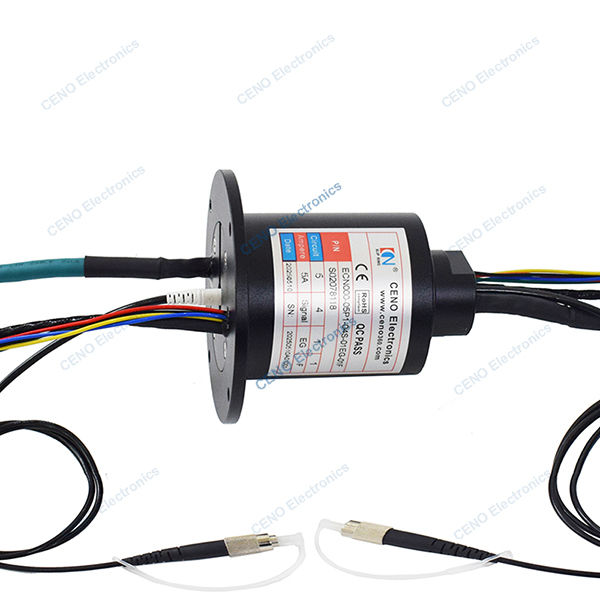

ECN000-05P1-04S-01EG-01F is CENO Integrate electric power signal and fiber optic rotary joint slip ring, that is equipped in the machine working in low temperature -40°C~+50°C. Slip ring is an electro-mechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. CENO integrate fiber optic rotary joint slip rings are developed for rugged environment and demanding requirements, and performing in aerospace and defense application.




Features

  • Integrate design combine power signal and fiber optic rotary joint
  • Low temperature design
  • Can be integrated various data
  • Install easy & Free maintenance


Applications

  • Robotics
  • Material conveying system
  • Radar system
  • Remote control system
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Wave length & fiber type
  • Contact / Housing Materials
  • Structure and installation
  • Working speed & temperature




Specification

ECN000-05P1-04S-01EG-01F

Specification
Current & Circuits5 circuits * 5A; 4circuits * signal; 1 * Ethernet Signal; 1 * Fiber optic
Rating Voltage0 ~ 220 VAC/VDC
Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave≤ 10mΩ
Working temperature-40°C~+50°C
Working humidity60 %RH
IP protection gradeIP51
Operating speed0~300rpm
Outer diameterØ56mm
Contact materialPrecious Metal
Housing materialAluminum Alloy
Lead wire lengthRotor: 1000mm; Stator: 1000mm
Installation wayFlange installation
Fiber Optic
Wave length1310/1550
Insert loss＜2dB
Return loss＜30dB
Insertion loss deviation＜±0.5dB
ConnectorFC
Cable lengthStator: 700±10mm; Rotor: 1100±15mm




Outline drawing

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring 0






CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
