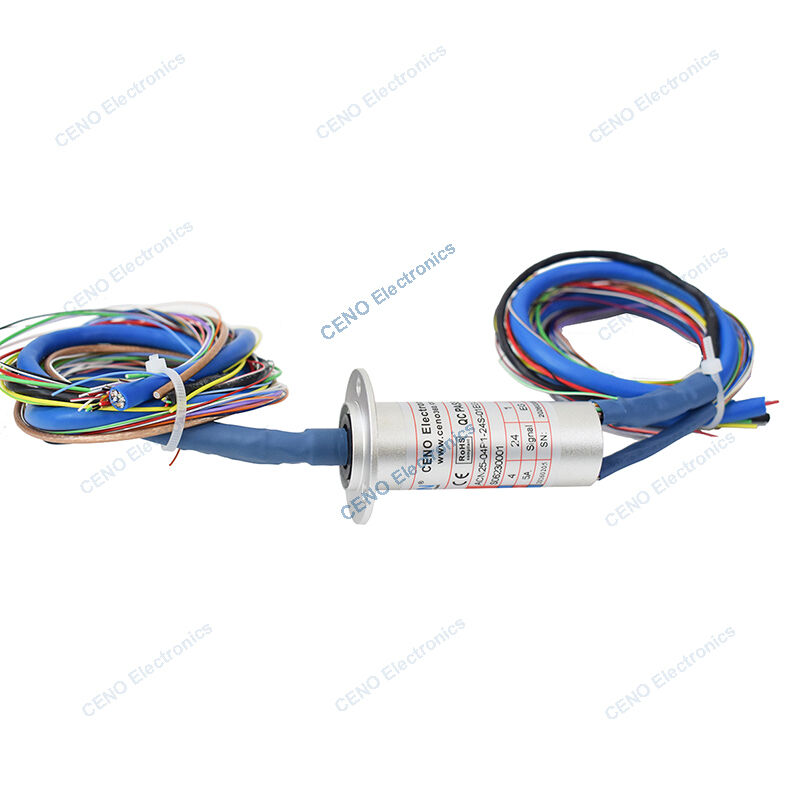

HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone
ACN25-04P1-24S-01EG-01HD is CENO Capsule slip ring with HDMMI signal. HD slip rings include SDI HD and HDMI, which can transmit electrical signals, HD video signals, and high-speed digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO’s high-definition slip rings use the leading domestic defance technology and have the advantages of stable transmission, ultra-low signal attenuation loss and transmission fluctuation. For more information please contact us.
Features
- Support video standards up to 2K @ 90Hz, No flash screen no frame loss
- Compact structure can combine kinds data, signal and electric power
- Install easy & Free maintenance
Applications
- Automatic machine
- Aircraft models
- Cable equipment
- Special vehicles and ships
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
|
ACN25-04P1-24S-01EG-01HD Specification
|
|
Current & Circuits
|
4 * 5A; 20 * Signal; 1 * RS485; 1*HD-SDI; 1 * 1000M Ethernet Signal
|
|
Rating Voltage
|
0 ~ 110 VAC/VDC
|
|
Dielectric strength
|
≥200VAC@50Hz; ≥100VAC@50Hz
|
|
Isolation resistance
|
≥50MΩ@200VDC; ≥10MΩ@100VDC
|
|
Contact resistance wave
|
≤ 35mΩ
|
|
Working temperature
|
-20°C~+60°C
|
|
Working humidity
|
60%RH
|
|
IP protection grade
|
IP40
|
|
Operating speed
|
0~200rpm
|
|
Outer diameter
|
Ø25mm
|
|
Contact material
|
Precious Metal
|
|
Housing material
|
Aluminium Alloy
|
Outline Drawing
