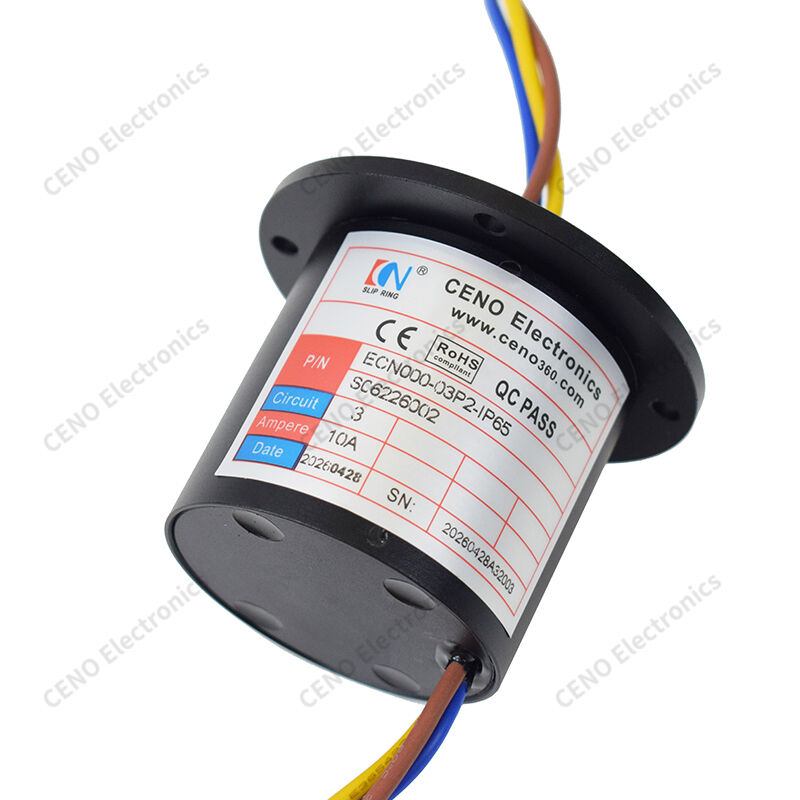

Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof

Waterproof slip ring with IP65 dustproof & waterproof

Plaats van herkomst China
Merknaam CENO
Certificering CE,RoHS,ISO9001,UL
Modelnummer ECN000-03P2-IP65
Productgegevens
Bescherming ((IP-klasse):
IP65
Werkvochtigheid:
60% RV
Werktemperatuur:
-20 ℃ ~+60 ℃
Beoordeling spanning:
0~24VAC/VDC
Circuits en stroom:
3 circuits *10A (24V)
Diëlektrische sterkte:
≥1000VAC@50Hz
Isolatieweerstand:
500MΩ@500VDC
Elektrisch geluid:
Maximaal 30 mΩ (50 tpm)
Lodd draadlengte:
Rotor: 2000 mm; Stator: 2000 mm
Werksnelheid:
0 ~ 10 tpm
Rotatiewijze:
Installatie van de statorsidale flens
contactmateriaal:
Edel metaal
Materiaal behuizing:
Aluminiumlegering
Betaling en verzendvoorwaarden
Min. bestelaantal
1 stks
Prijs
Onderhandelbaar
Verpakking Details
Karton/als verzoek
Levertijd
1 week
Betalingscondities
T/T, PayPal, Western Union
Levering vermogen
500 stuks per maand
Productbeschrijving

Waterproof slip ring with IP65 dustproof & waterproof

ECN000-03P2-IP65  is CENO  Waterproof slip ring features 3 independent circuits with 10A current per channel, rated IP65 dustproof & waterproof for wet/outdoor rotating equipment. Adopting precious metal contact structure, it enables 360° unlimited rotation power transmission without wire tangling. Black anodized metal housing with flange mounting holes for easy installation, certified CE & RoHS compliant, factory inspected with stable low contact resistance and long service life.


Features

  • 3 circuits
  • 10A per line
  • IP65 sealed
  • Precious metal contact
  • Flange mount
  • CE RoHS certified

Applications

  • Rotating camera pan-tilt
  • Outdoor rotary light
  • Automated rotary jig
  • Small robot joint
  • Car wash rotary unit
  • Packaging machinery

Optional

  • Custom wire length
  • Extra circuits
  • Higher current
  • Higher IP grade
  • Special voltage
  • Custom housing color

Specification

ECN000-03P2-IP65

Specification

Protection(IP Grade)

IP65

Working Humidity

60%RH

WorkingTemperature

-20℃~+60℃

Rating Voltage

0~24VAC/VDC

Circuits& Current

3 Circuits *10A(24V)

Dielectric Strength

≥1000VAC@50Hz

Insulation Resistance

500MΩ@500VDC

Electrical Noise

Max 30mΩ(50rpm)

Lead Wire Length

Rotor: 2000mm; Stator:2000mm

Working Speed

0~10 rpm

Rotation Way

Stator side flange installation

Contact Material

Precious Metal

Housing Material

Aluminum Alloy


Outline drawing

 Waterproof slip ring with IP65 dustproof & waterproof 0

CENO is a technologically advanced company in the slip ring field, specializing in research and development, manufacturing, and sales. We utilize advanced equipment and high-precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

CENO manufacturing facility and production environment
Certifications

ISO9001, CE, RoHS, UL, Explosion-proof

CENO product certifications and quality standards
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training programs.

Services Provided
  • 24/7 consultant service
  • Mass and customized production
  • Solution offerings for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
