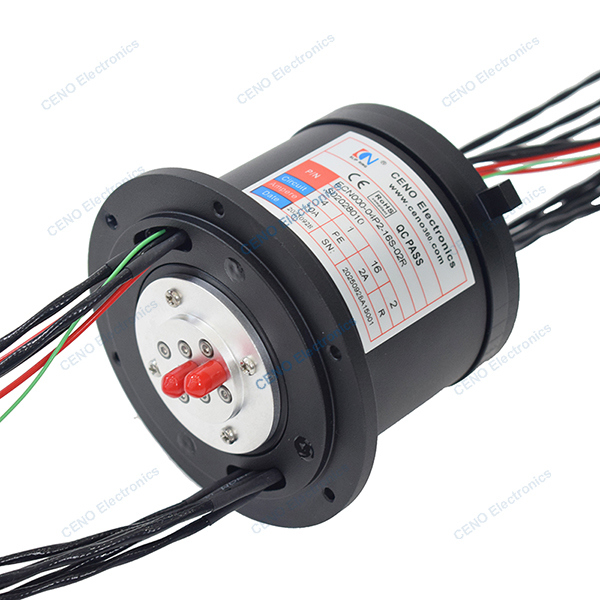

2 Channels RF Rotary Joint combined Electric Power and Signal for Radar
ECN000-04P2-16S-02R is CENO integrate slip ring combine Power, weak electric signal and 2 channels radio frequency rotary joint. Which equipment in the equipment working in low temperature environment from -40°C to +85°C. Integrate slip ring often used in the rotating connection parts of equipment. Due to electromagnetic interference and space limitations, integrated slip ring have emerged, and providing a comprehensive solution. Information about how CENO slip ring can fit your application please contact us.
Specification
| ECN000-04P2-16S-02R Specification |
| Current & Circuits |
4 circuits * 10A; 1 * PE; 16 circuits * 2A |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 15mΩ |
| Working temperature |
-40°C~+85°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP54 |
| Operating speed |
0~30rpm |
| Outer diameter |
Ø85mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
| Service life |
5 million rotation |
| Lead wire length |
As customized |
| RF Rotary Union |
|
| Channel |
Channel 1 |
Channel 2 |
| Connector type |
SMA-f (50Ω) |
SMA-f (50Ω) |
| Connector style |
Style I |
Style I |
| Frequency range |
0~4 GHz |
0~4 GHz |
| SWR (max.) |
1.2 |
1.35 |
| Insertion loss (max.) |
0.4dB |
0.5dB |
| Insertion loss wave (max.) |
0.05dB |
0.5dB |
Features
- Integrate design combine power signal and 2 channels RF joint
- Simply system structure & optimize wire & suit low temperature
- Install easy & Free maintenance
Applications
- Radar antenna
- High definition video
- Air traffic control radar
- Airborne radar
- Navigation
Optional
- Channels
- Frequency range
- Connector
- Protection grade
- Working speed & temperature
Outline drawing
