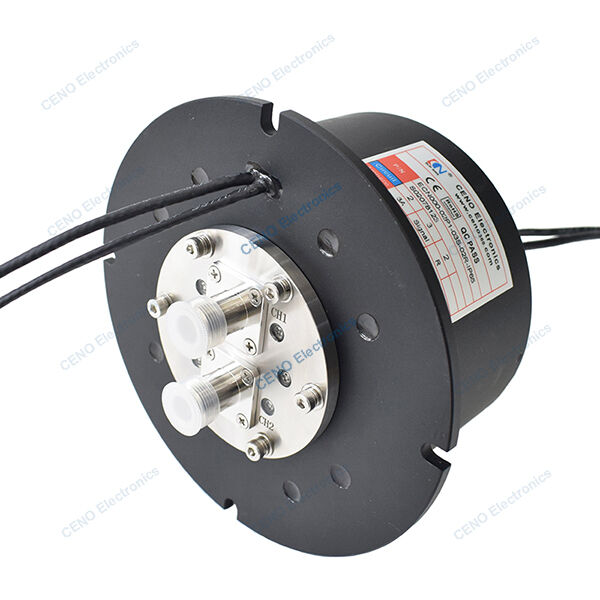

Low Temperature Integrate Power and Radio Frequency Slip Ring combined RF rotary Joint
ECN000-02P1-03S-02R-IP65 is CENO Integrate RF Slip Ring combined circuits electric power signal and 2 channels radio frequency rotary joint suit for low temperature environment. CENO integrate slip rings are multi-functional rotary connection solution that highly integrate various transmission modules such as power slip ring, forjs, rf rotary joint and pneumatic/hydraulic channels, specially designed for the simultaneous rotary transmission in complex system. For more information please contact us.
Specification
| ECN000-02P1-03S-02R-IP65 Specification |
| Current & Circuits |
2 * 3A; 3 *10 Signal |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC;≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-40°C~+60°C(W); -45°C~+70°C (S) |
| Working humidity |
60 %RH |
| IP protection grade |
IP65 |
| Operating speed |
0~30rpm |
| Outer diameter |
Ø130mm |
| Materials |
Precious Metal; Aluminium Alloy |
| Installation |
Flange installation |
| RF ROTARY JOINT |
|
| Channels |
Channel 1 |
Channel 2 |
| Connector type |
N-K(50Ω) |
N-K(50Ω) |
| Frequency range |
DC to 1GHz |
DC to 1GHz |
| Average power (max) |
60W |
20W |
| WSR (max) |
1.25 |
1.3 |
| WSRC (max) |
0.1 |
0.15 |
| Insert loss (max) |
0.3dB |
0.4dB |
| Insertion loss rate (max) |
0.1dB |
0.1dB |
| Isolation |
70dB |
70dB |
Features
- Compact structure with integrate design & option signals / data
- Suit for low temperature, Stable performance, high sealing type
- Install easy & Free maintenance
Applications
- Automatic machine
- Scientific research Navigation
- Air traffic control radar
- Photoelectric pod system
- High definition video
Optional
- Circuit, Voltage, Current
- Channels / Frequency range
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
